36V 48V Ebike Controller Kit 750W 1000W 30A Brushless Motor Controller 3 Mode Sine Wave Controller with Ebike Color LCD Display Electric Scooter Controller for Hall Sensor or Sensorless Motor
Product details
| Management number | 221668697 | Release Date | 2026/05/03 | List Price | US$35.72 | Model Number | 221668697 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Outstanding Performance Ebike Controller】This 48v controller is crafted with professional technology and premium materials. This brushless motor controller features: powerful torque, strong climbing capability, robust power, steady speed, and low noise. The electric bike controller possess many intelligent protection systems such as: overcurrent, undervoltage, and overheating, which extend the motor and battery lifespan, saves energy, and ensure the motor performs efficiently and reliably
- 【Wide Compatibility Sine Wave Controller】This electric bike brushless motor speed controller can sensitively control braking and direction changes. The e bike controller is a 3 mode sine wave controller, which can be compatible with both hall and hall free brushless motor. when hall sensors function normally, the 48v motor controller engages sine wave control; If hall sensors fail or no Hall sensor, the ebike motor controller switches to square wave mode, maintaining motor seamlessly operation

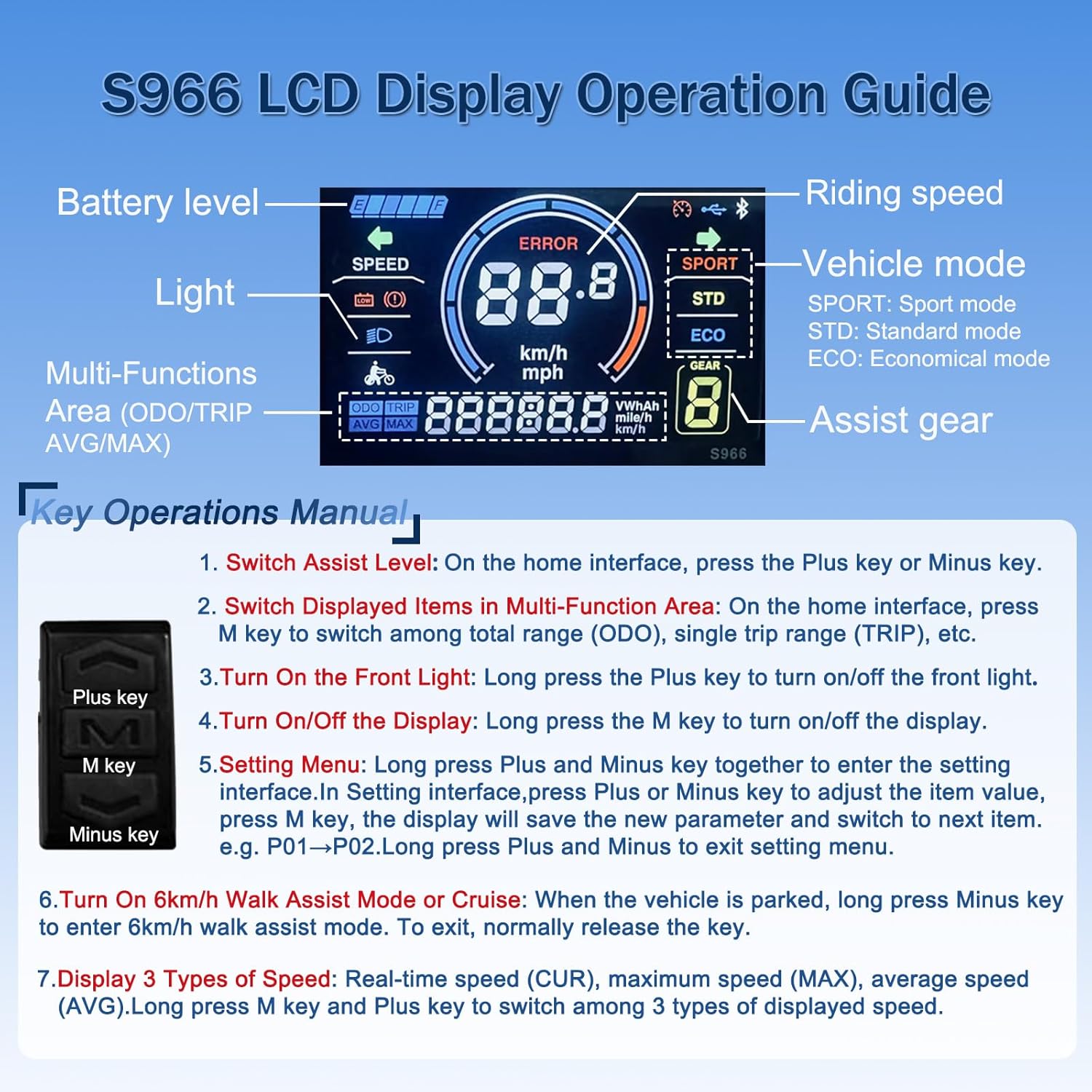

- 【Smart Ebike Color LCD Display】This ebike lcd display screen has a bright, clear display with a large screen for easy reading.You can easily obtain lots of data, such as: riding speed, battery level, cruise control, and assist levels. The electric bicycle color display control panel can customize what’s shown on the front as needed. This LCD meter is equipped with NFC key card unlocking and can also be opened by passwords. The default initial password is "2023", enhancing the vehicle security

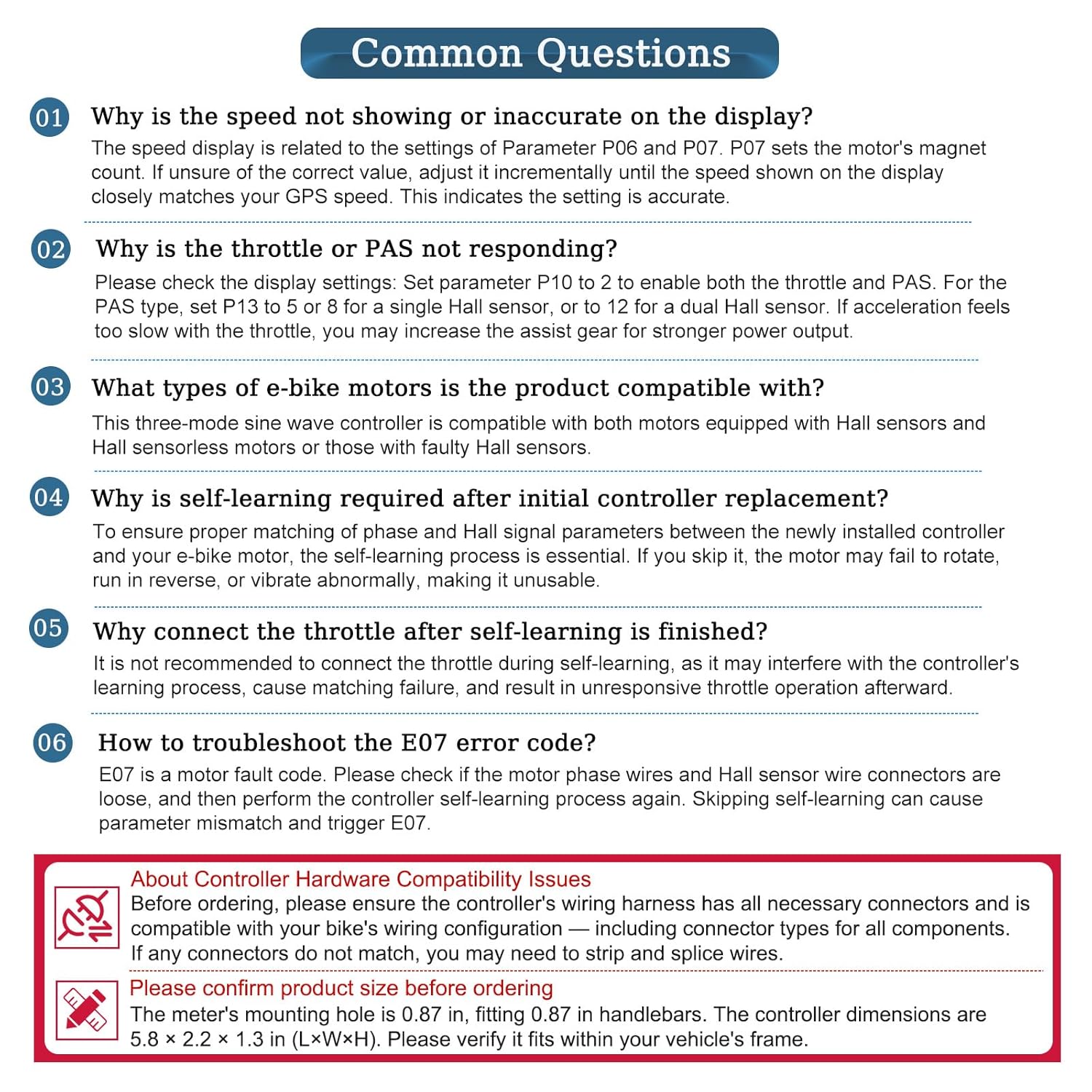

- 【48V Brushless Controller Self-learning Wires】When using this 36v 48v ebike controller with display for the first time, connect the two self-learning wires on the electric scooter controller to match your motor construction. Keep for 10 seconds, if the motor rotates forward, pairing is successful. If the motor runs in reverse, stalls, or produces abnormal humming, disconnect the two wires and reconnect it to restart pairing. Once functioning properly, always disconnect the study wires afterward

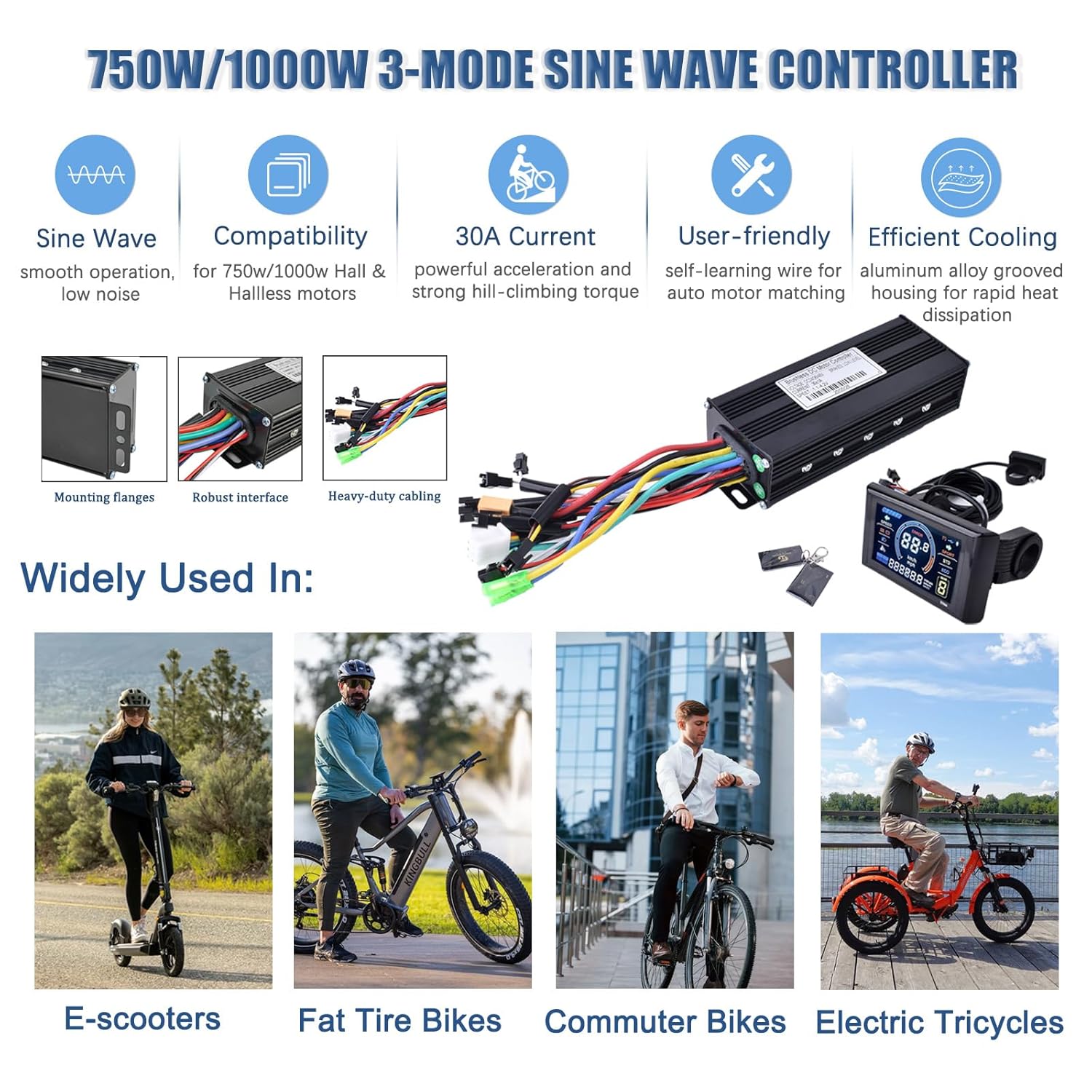

- 【Easy Installation and Wide Application】This 750w 1000w electric bike controller kit is easy to install: simply connect the wires according to the electric bicycle controller functions and the corresponding parts of the electric vehicle. The ebike display comes with a 22.2mm/0.87in mounting bracket. This ebike bldc controller with display is widely applicable for replacing or upgrading controllers of e-bikes, scooters, brushless hub motors, and electric tricycles, making your bike run like new
| Model | BLDC30A-S966 |
|---|---|
| Speed | 23 Miles per Hour |
| Voltage | 48 Volts |
| Wattage | 750 watts |
| Brand Name | Haeweypf |
| Horsepower | 1000 Watts |
| Model Name | 750w-1000w S12-B30A Brushless Controller |
| Part Number | BLDC30A-S966 |
| Manufacturer | Haeweypf |
| Material Type | Aluminum |
| Included Components | 1× Ebike Brushless Controller，1× S966 LCD Display |
